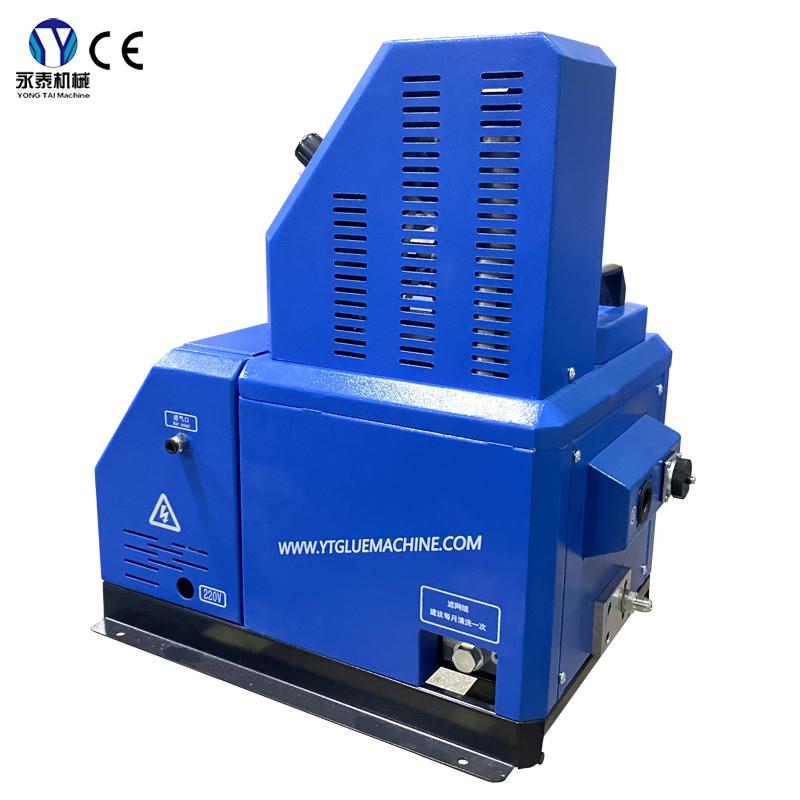

YT-QB502 5kgs piston pump hot melt application systems

5kgs glue machine for 2 outputs with large rate of flow.
  • Brand:

    Yongtai machine
  • Item NO.:

    YT-QB502
  • Order(MOQ):

    1
  • Product Origin:

    Fujian,China
  • Color:

    Blue
  • Shipping Port:

    XIAMEN PORT
  • Lead Time:

    7
  • Product Detail

Its characteristics are mainly sensitive, fast, suitable for some industries where high-speed glue spraying and small amount of glue are used.



SPECIFICATION:

ITEM

UNIT

YT-MD502

YT-MD501

YT-QB502

YT-QB501

Tank Capacity

Liter

5.0

5.0

5. 0

5.0

Max. malting rate

KG\HOUR

7.0

7.0

7.0

7.0

Max. Operation temp.

200

200

200

200

Melt Power

Watt

2200

2200

2200

2200

Motor power

Watt

90

90





Air pressure

KG\CM²

4-6

4-6

4-6

4-6

Dimension(L*W*H)

MM

420*380*640

420*380*640

420*380*640

420*380*640

Weigh

KG

35

35

35

35

Max. Viscosity

CPS

30000

30000

25000

25000

Power Requirement

Single Phase (1Φ), 220 V

Hose Output

Line

2

1

2

1

Pump Type



Gear pump

Gear pump

Piston pump

Piston pump



Glue way:
1. Dot, strip, spray
2. You can choose automatic glue spraying, semi-automatic glue spraying, or hand-held gun spraying glue

This glue machine uses a pneumatic pump to supply glue, and is usually called a "piston pump hot melt machine". Its working principle is to drive a piston pump through air pressure to deliver glue. Therefore, the stability of the hot melt adhesive machine equipment is controlled by stable air pressure to a large extent. The air pressure control is required to be effective and correct. The sudden increase and decrease of the air pressure or the fast and slow will affect the glue spraying of the hot melt adhesive stability.
